Heat-of-compression regeneration: The SMR series uses available compressor discharge heat as the main regeneration energy source for the off-line desiccant tower.

Current catalog range: Listed SMR models cover 37–300 Nm³/min, with 0.25 kW control power across the series and DN100–DN250 process connections depending on model.

Low-purge cooling: The current catalog lists approximately 2%–4% regeneration gas under its stated operating conditions. Actual performance depends on available compressor discharge temperature, flow, pressure and cooling conditions.

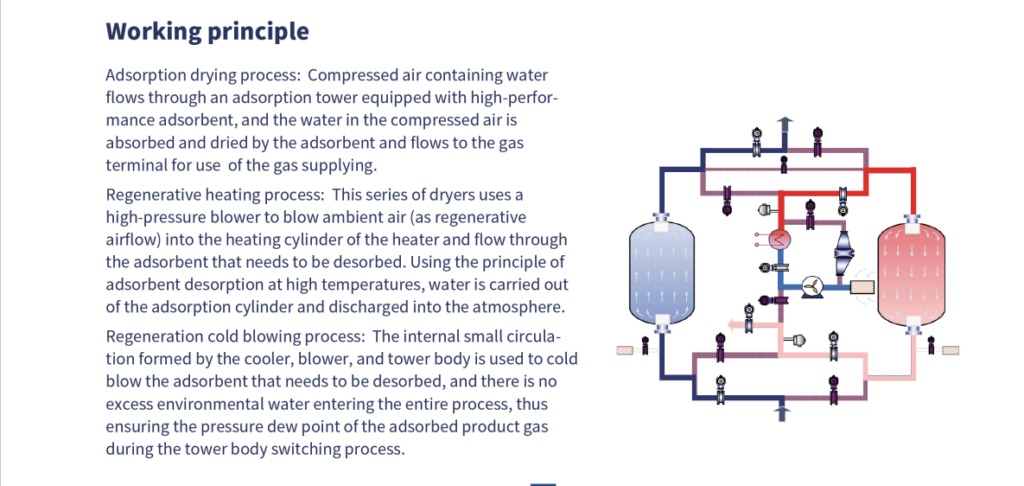

Twin-tower continuous drying: One tower dries process air while the other regenerates and cools before switching back into service.

Final selection must confirm compressor type, discharge temperature, working pressure, inlet contamination, cooling-water conditions and required pressure dew point. Heat-of-compression dryers should not be selected from nominal flow alone.
