Laser Cutting Dry Fume Dust Collector Series

Cartridge filtration for laser-cutting and metalworking fume: Pleated filter media provides a large filtration area in a compact collector. Filter selection should match the actual dust characteristics and process conditions.

Automatic pulse cleaning: Compressed-air pulses remove accumulated dust from the cartridge surface to help control differential pressure and maintain airflow.

PLC control and protection: The control system supports automated operation and equipment protection functions for routine industrial use.

Centrifugal fan and engineered airflow path: Fan selection should be based on the required airflow at the total system static pressure, including hoods, ducts and filter resistance.

Multiple HY-series capacities are available for laser cutting, welding and centralized dust extraction. Final model selection should use actual extraction points, airflow, duct layout and operating schedule.

+86 180 5167 0936

Product Specifications

HY Series Model Specifications

The HY catalog lists seven dry fume and dust collector models, from HY-300 to HY-2200, for selecting extraction capacity around the process and duct system.

Scroll horizontally on smaller screens.

HY series catalog specifications
Model	Power (kW)	Max. Airflow (m³/h)	Catalog Max. Pressure (Pa)	Cartridges	Filter Area (m²)	Inlet Diameter (mm)	Weight (kg)
HY-300	3	2900	2000	2	46	250	420
HY-550	5.5	4500	2000	4	92	250	520
HY-750	7.5	7200	2500	6	138	300	620
HY-1100	11	10000	2800	8	184	300	790

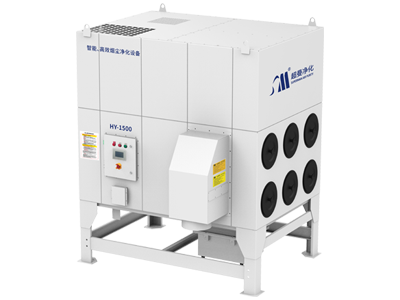

HY-1500	15	12000	3000	12	276	300	1120
HY-1850	18.5	16000	3000	18	414	550	1700
HY-2200	22	20000	3000	24	552	600	1900

Rating note: maximum airflow and maximum pressure are separate catalog values. Confirm the required airflow at the actual system resistance; do not assume both maxima occur at the same operating point.

Filtration and Cleaning

Catalog supply: 380V / 50Hz; confirm phase and electrical configuration.
Listed filter material: nano flame-retardant composite fiber cartridges.
Catalog filtration rating: 0.3–3.0 µm; confirm the selected cartridge and test conditions.
Automatic reverse-pulse cleaning with compressed-air requirements varying by model.

Specify the available cleaning-air pressure and air quality when selecting the model. The particle-size rating alone does not establish a collection-efficiency percentage or a process-specific emissions guarantee.

Laser-Cutting Extraction Selection

Send cutting material, laser power, table size, enclosure and extraction-zone arrangement. Include the number of machines that operate together and a sketch of the duct route, branches and available installation space.

Confirm the dust characteristics and operating schedule so the filter configuration, cleaning sequence and dust-handling arrangement can be matched to the process.
