SUPERMAN · SMDV SERIES
Variable-Speed Drying for Changing Air Demand
The SMDV refrigerated air dryer adjusts refrigeration compressor output to match compressed-air demand. An aluminum plate heat exchanger, automatic temperature control and compressor soft start support operation under changing loads.
Catalog capacity: 13.5–100 Nm³/min. Frequency range: 30–90 Hz or 30–120 Hz, depending on the model.
Request a Model Recommendation View Model Specifications
When to Consider a Variable-Speed Dryer
- Compressed-air demand changes between shifts or production cycles.
- You want refrigeration output to follow the drying load.
- You can provide operating hours and load information to assess energy use.
Controls and Operating Data
- Automatic evaporation-temperature adjustment within the catalog range of 2–10°C.
- Real-time power and current display.
- Compressor soft start and protection against liquid compression.
Evaporation temperature and pressure dew point are different measurements. Confirm the required pressure dew point and rated capacity for your actual operating conditions.
Technical Specifications
Values are transcribed from the original SMDV data sheet. The power column is labeled at 60Hz in the catalog, while the electrical supply is listed as 50Hz. Confirm the rating basis and the supplied electrical configuration with SUPERMAN before ordering.
Scroll the table horizontally on smaller screens.
| Model | Capacity (Nm³/min) | Power Supply | Rated Power at 60Hz (kW) | Weight (kg) | Frequency (Hz) | Connection | L × W × H (mm) |
|---|---|---|---|---|---|---|---|
| SMD135LV | 13.5 | 220V / 1PH / 50Hz | 2.39 | 120 | 30–90 | G2 | 1150 × 900 × 1280 |
| SMD170LV | 17.0 | 220V / 1PH / 50Hz | 2.49 | 150 | 30–90 | G2.5 | 1150 × 900 × 1280 |

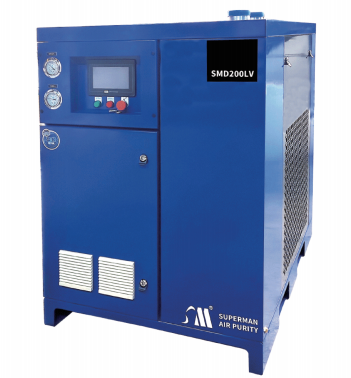

| SMD200LV | 20.0 | 220V / 1PH / 50Hz | 3.41 | 170 | 30–90 | G2.5 | 1150 × 900 × 1280 |
| SMD250LV | 25.0 | 380V / 3PH / 50Hz | 3.41 | 200 | 30–90 | G3 | 1350 × 900 × 1280 |
| SMD340LV | 34.0 | 380V / 3PH / 50Hz | 4.73 | 350 | 30–90 | DN100 | 1315 × 1200 × 1800 |
| SMD400LV | 40.0 | 380V / 3PH / 50Hz | 5.9 | 350 | 30–90 | DN100 | 1315 × 1200 × 1800 |
| SMD500LV | 50.0 | 380V / 3PH / 50Hz | 7.15 | 350 | 30–90 | DN100 | 1315 × 1200 × 1800 |
| SMD600LV | 60.0 | 380V / 3PH / 50Hz | 9.68 | 600 | 30–90 | DN150 | 2075 × 1250 × 1845 |
| SMD750LV | 75.0 | 380V / 3PH / 50Hz | 9.8 | 600 | 30–90 | DN150 | 2075 × 1250 × 1845 |
| SMD800LV | 80.0 | 380V / 3PH / 50Hz | 9.48 | 600 | 30–120 | DN150 | 2075 × 1250 × 1845 |
| SMD1000LV | 100.0 | 380V / 3PH / 50Hz | 12 | 600 | 30–120 | DN150 | 2075 × 1250 × 1845 |
How to Assess Energy Savings
Savings depend on the load profile, operating hours, inlet and ambient temperatures, dew-point requirement and the dryer used for comparison. The catalog comparison assumes 8,000 annual operating hours at an average load and is for reference only; it does not establish a guaranteed saving or payback period for your site.
Information for Selection
- Air flow and its reference conditions; minimum and maximum demand.
- Working pressure, highest inlet temperature and ambient temperature.
- Required pressure dew point, operating hours and available power supply.
The catalog uses correction factors for pressure, inlet temperature, ambient temperature and dew point. Send these conditions so the capacity can be checked.
Original Product Documents
- Product and control features
- Catalog operating conditions
- Original model specifications and correction factors
Check Your Dryer Selection
Tell us your flow, pressure, temperature, operating hours and target dew point. Include the model you are considering; unknown details can stay blank.
Send Your Requirements
