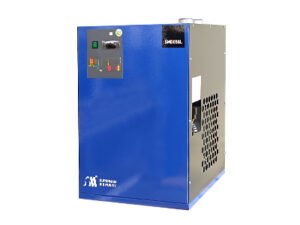

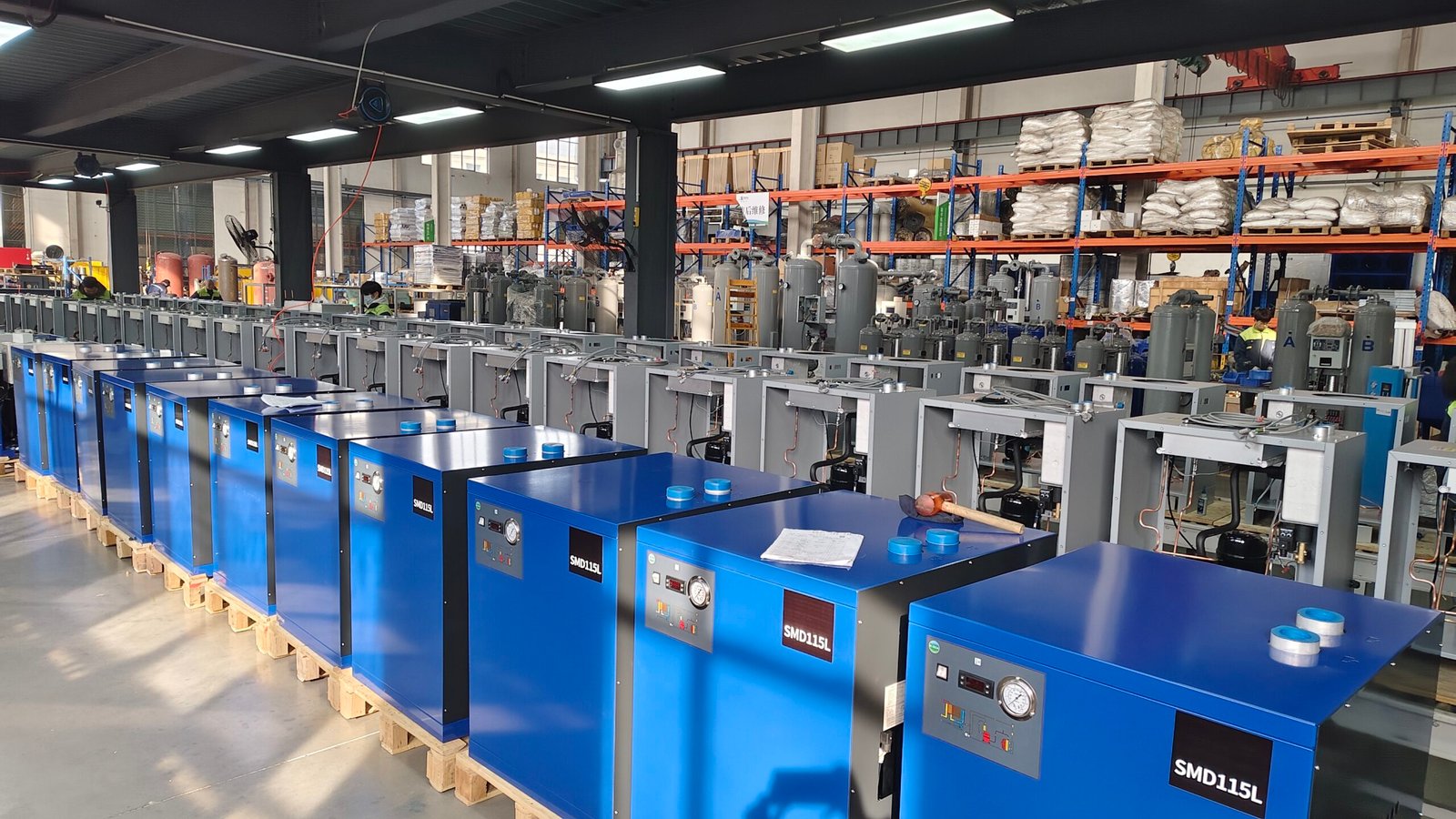

SMD Series Refrigerated Air Dryers
Remove condensed moisture from compressed air with an aluminum plate-fin heat exchanger, refrigeration compressor and electronic drain. Choose from 17 catalog models for general industrial compressed-air systems.
Catalog capacity: 1.6–100 Nm³/min Pressure dew point: 2–10°C under catalog standard operating conditions.
Request a Dryer Recommendation View Specifications

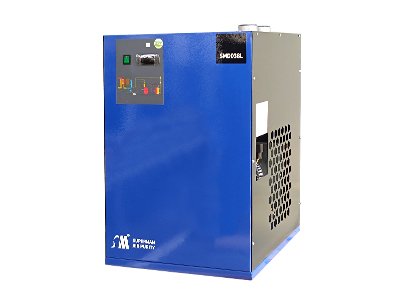

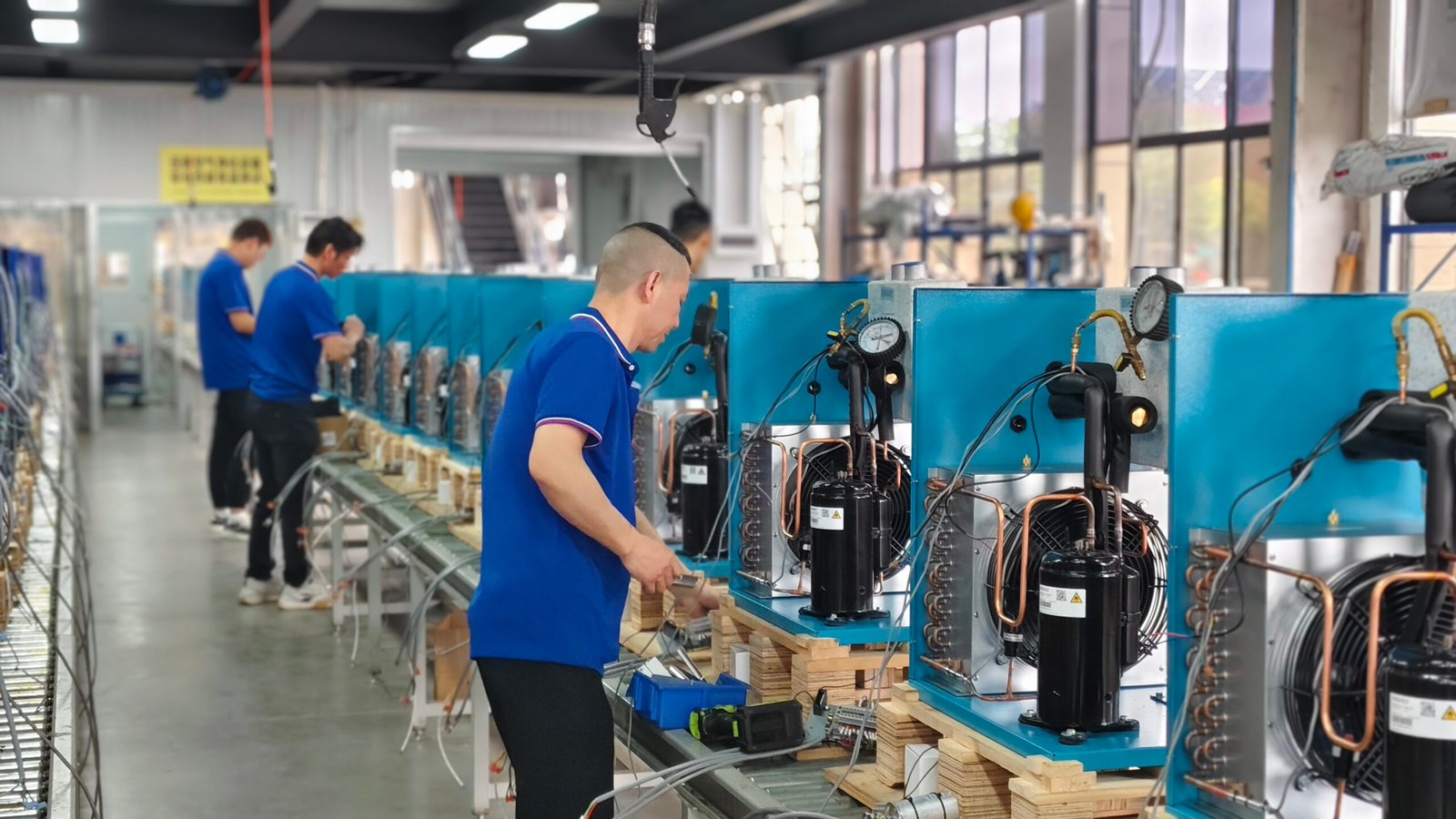

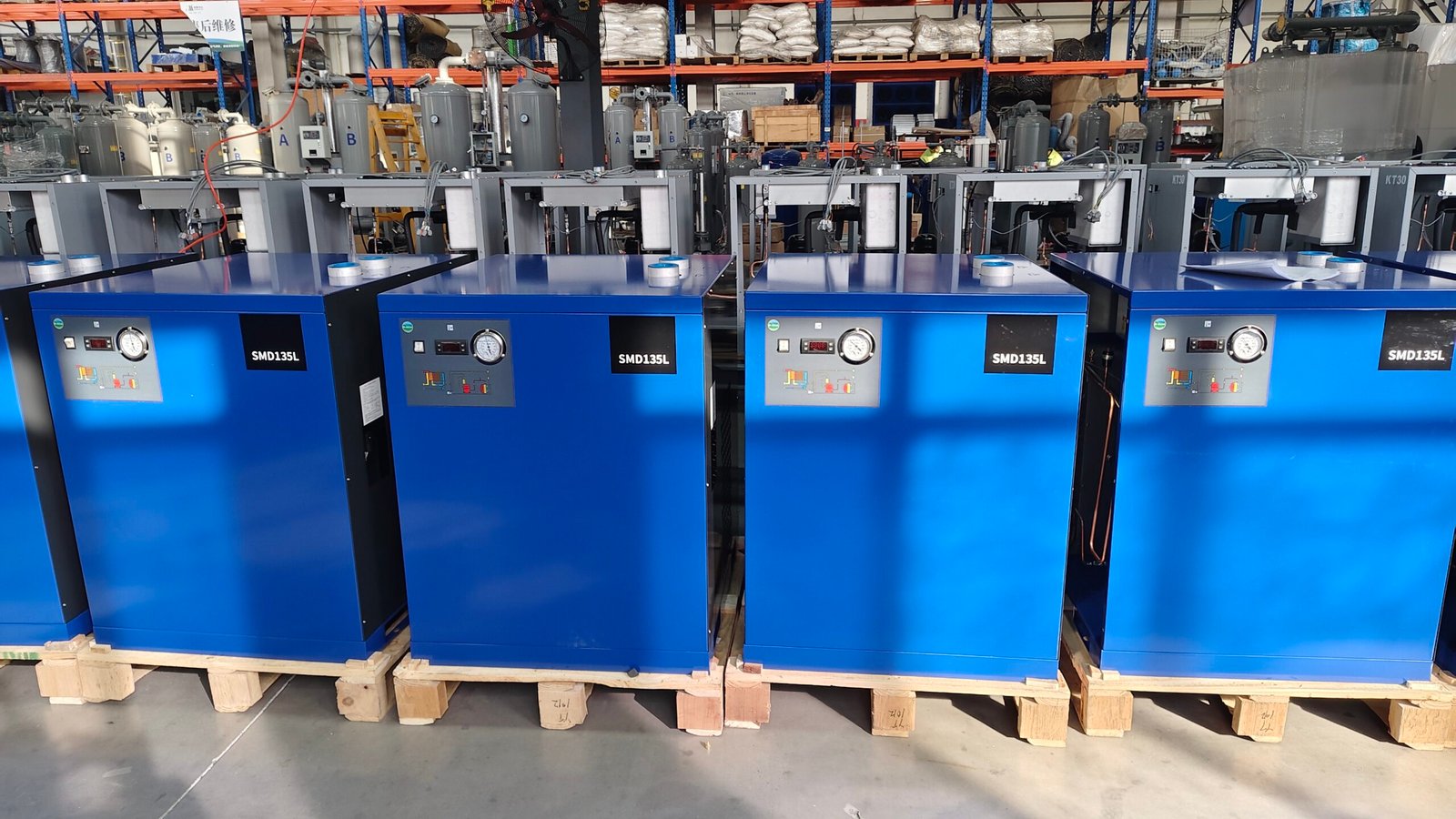

Product Construction
- Aluminum plate-fin heat exchanger for air cooling and moisture separation.
- Temperature controller for operating status and fault indication.
- Electronic drain valve for timed condensate discharge.

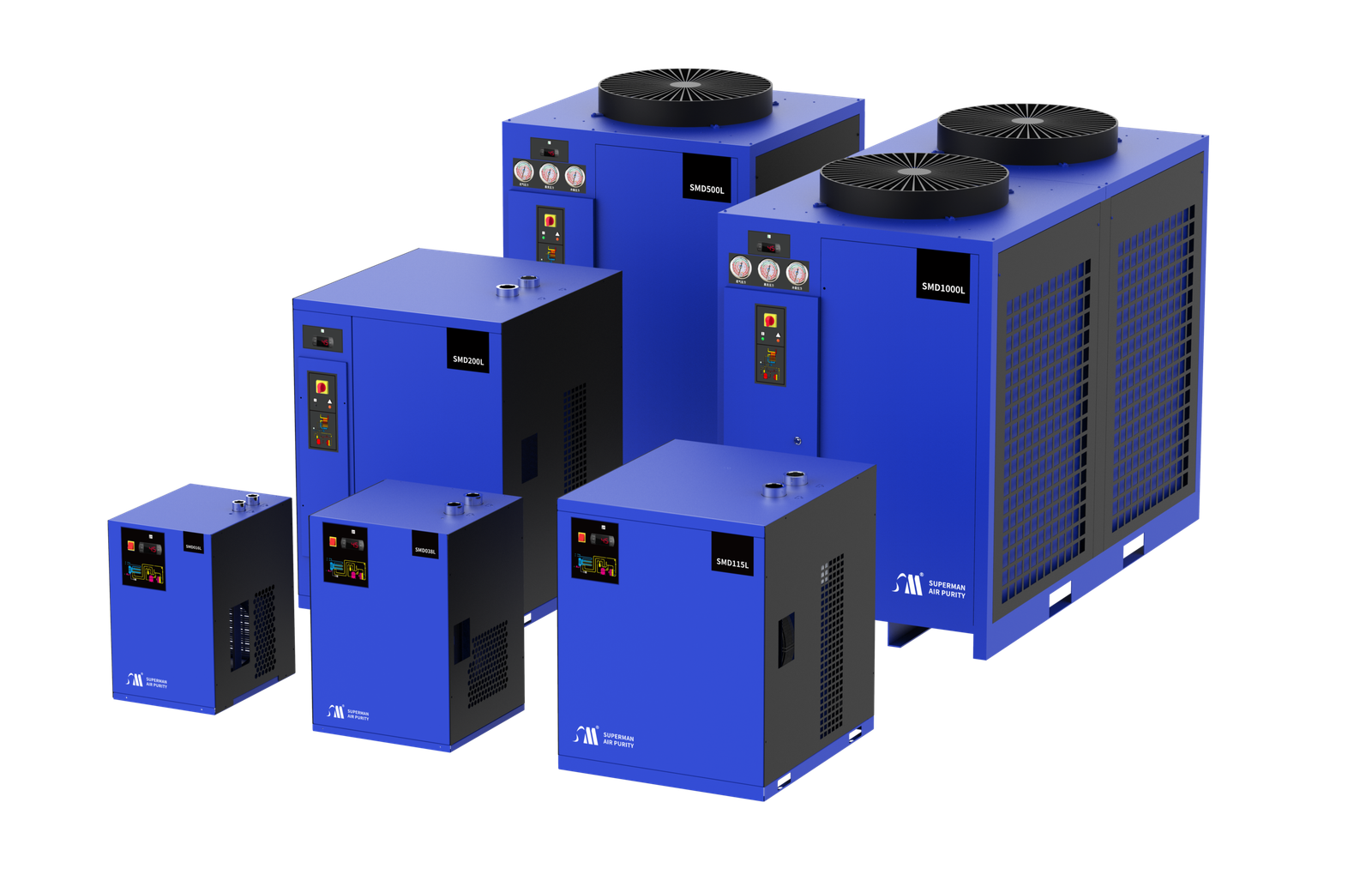

Technical Specifications
Values below are transcribed from the SMD series catalog. Capacity is stated in Nm³/min; confirm the flow reference conditions and capacity at your actual operating pressure and temperature before ordering.
On smaller screens, scroll the table horizontally to see all columns.

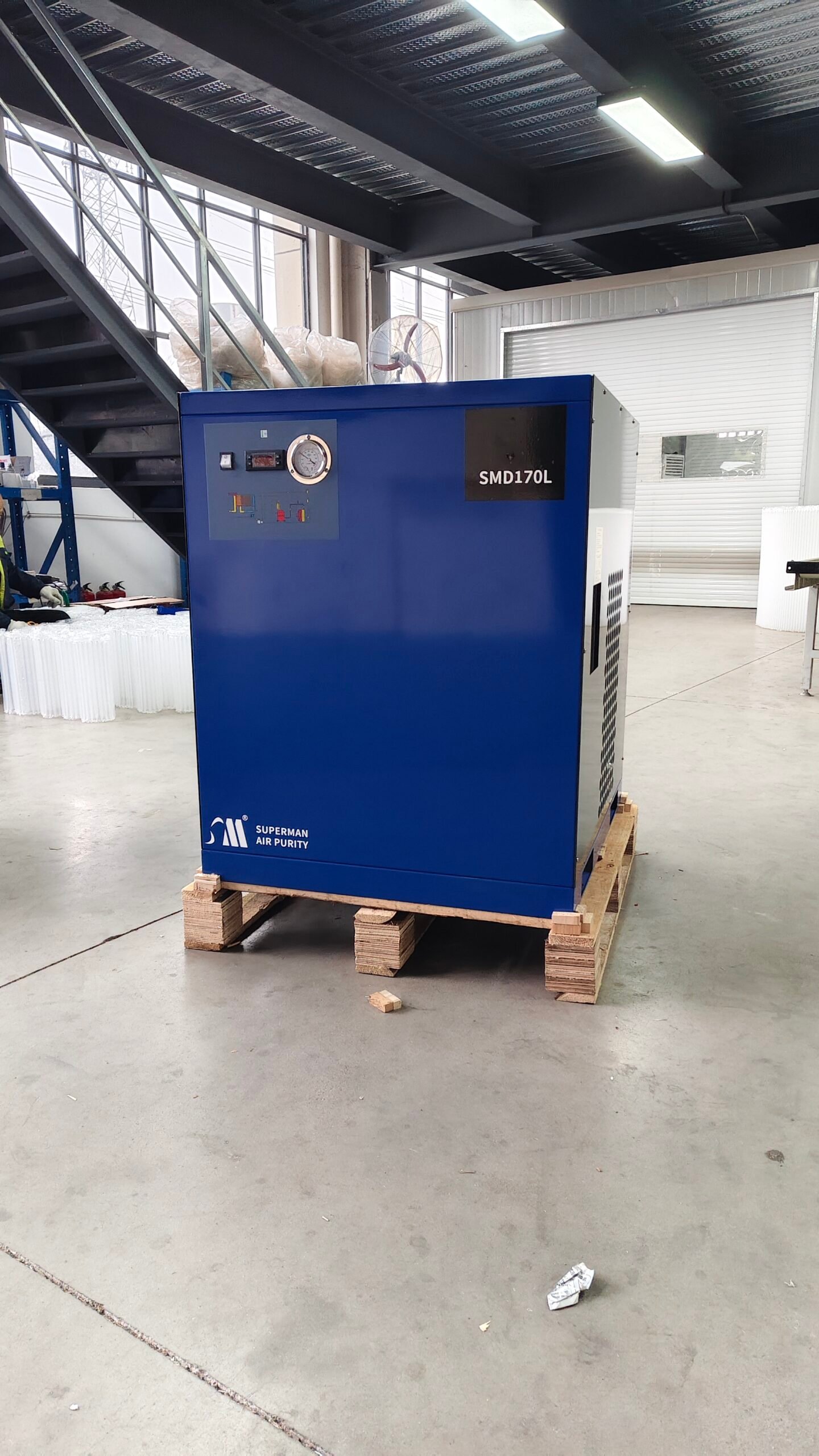

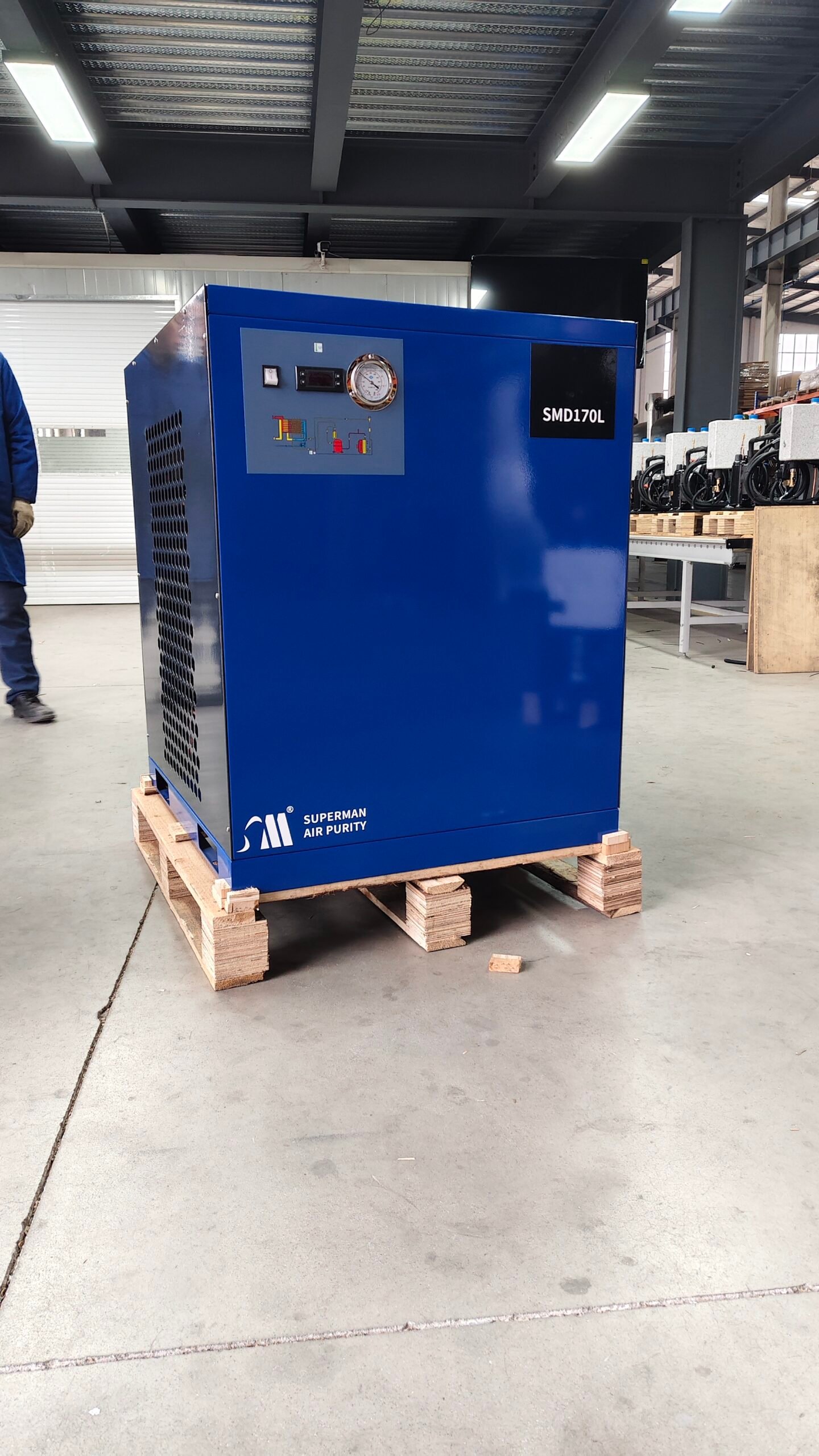

| Model | Capacity (Nm³/min) | Refrigerant | Power Supply | Rated Power (kW) | Weight (kg) | Connection | L × W × H (mm) |
|---|---|---|---|---|---|---|---|
| SMD016L | 1.6 | R410A | 220V / 50Hz / 1PH | 0.41 | 35 | G1 | 530 × 410 × 635 |
| SMD026L | 2.6 | R410A | 220V / 50Hz / 1PH | 0.75 | 42 | G1 | 530 × 410 × 635 |
| SMD038L | 3.8 | R410A | 220V / 50Hz / 1PH | 0.77 | 55 | G1-1/2 | 530 × 535 × 750 |
| SMD065L | 6.5 | R410A | 220V / 50Hz / 1PH | 1.23 | 70 | G1-1/2 | 530 × 535 × 750 |
| SMD085L | 8.5 | R410A | 220V / 50Hz / 1PH | 1.62 | 80 | G1-1/2 | 530 × 535 × 750 |
| SMD115L | 11.5 | R410A | 220V / 50Hz / 1PH | 2.38 | 110 | G2 | 850 × 750 × 920 |
| SMD135L | 13.5 | R410A | 220V / 50Hz / 1PH | 2.65 | 120 | G2 | 850 × 750 × 920 |
| SMD170L | 17.0 | R410A | 220V / 50Hz / 1PH | 3.25 | 150 | G2-1/2 | 920 × 850 × 1150 |
| SMD200L | 20.0 | R407C | 380V / 50Hz / 3PH | 2.93 | 170 | G2-1/2 | 920 × 850 × 1150 |
| SMD250L | 25.0 | R407C | 380V / 50Hz / 3PH | 3.58 | 200 | G3 | 920 × 850 × 1150 |
| SMD340L | 34.0 | R407C | 380V / 50Hz / 3PH | 4.96 | 320 | DN100 | 1150 × 1050 × 1600 |
| SMD400L | 40.0 | R407C | 380V / 50Hz / 3PH | 5.53 | 335 | DN100 | 1150 × 1050 × 1600 |
| SMD500L | 50.0 | R407C | 380V / 50Hz / 3PH | 7.47 | 350 | DN100 | 1150 × 1050 × 1600 |
| SMD600L | 60.0 | R407C | 380V / 50Hz / 3PH | 8.88 | 500 | DN150 | 2160 × 1050 × 1600 |
| SMD750L | 75.0 | R407C | 380V / 50Hz / 3PH | 10.75 | 550 | DN150 | 2160 × 1050 × 1600 |
| SMD800L | 80.0 | R407C | 380V / 50Hz / 3PH | 11.34 | 600 | DN150 | 2160 × 1050 × 1600 |
| SMD1000L | 100.0 | R407C | 380V / 50Hz / 3PH | 14.55 | 650 | DN150 | 2160 × 1050 × 1600 |
Selection and Operating Conditions
Select the dryer using the required air flow together with working pressure, inlet temperature, ambient temperature and required pressure dew point. A catalog flow value alone is not enough to confirm the correct model.
- Flow: send the compressor delivery and its stated reference conditions.
- Pressure: specify the working pressure in bar or MPa.
- Temperature: provide the highest expected inlet and ambient temperatures.
- Air quality: specify the required pressure dew point and filtration needs.
- Installation: confirm voltage, frequency, phase, connections and available space.
Use the catalog correction tables together with the supplier’s confirmation. The published dew-point range is not a fixed +3°C guarantee for every operating condition.

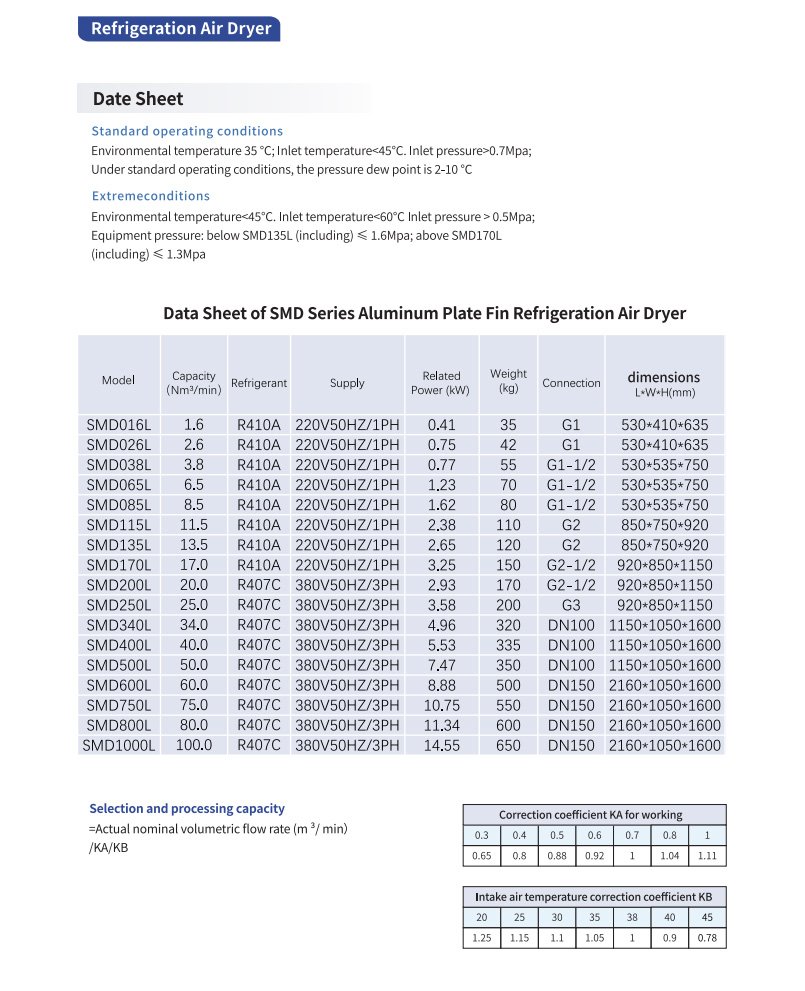

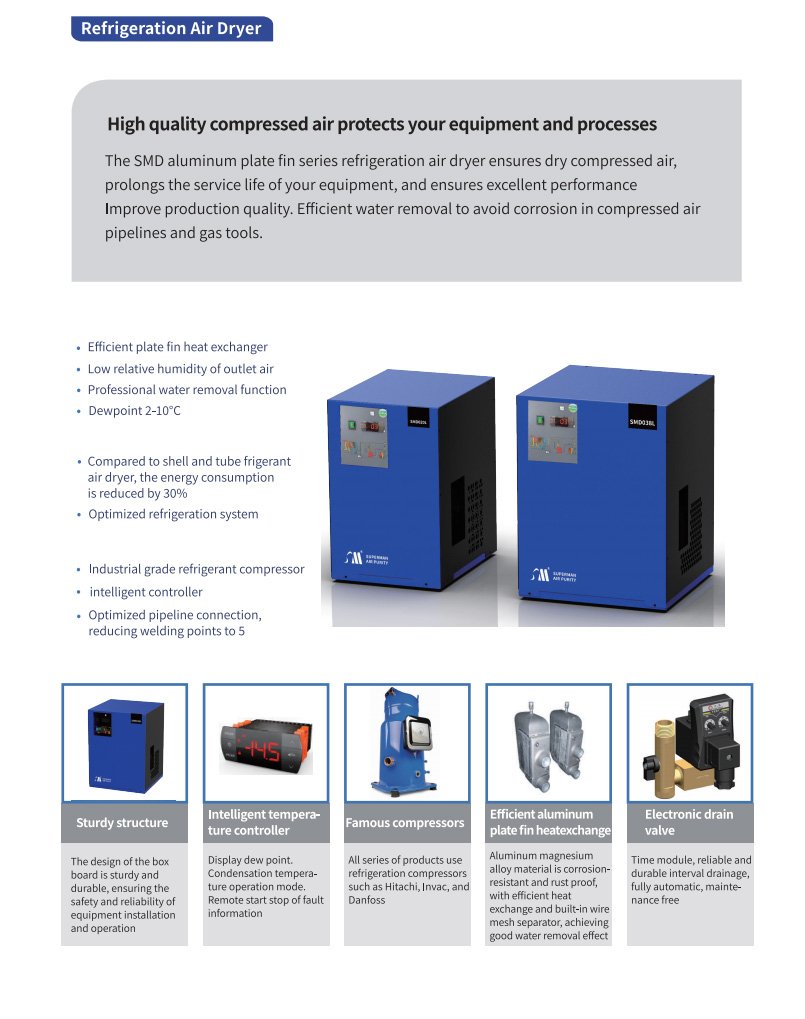

Original Catalog Data Sheet
Need Help Choosing a Model?
Send your air flow, working pressure, inlet temperature and application. Include the SMD model you are considering; leave unknown details blank.
