Product Introduction
The Heatless Adsorption Dryer is an energy-efficient compressed air drying system that utilizes the principle of pressure swing adsorption (PSA) to achieve extremely low dew points without requiring external heat for regeneration.
Working Principle

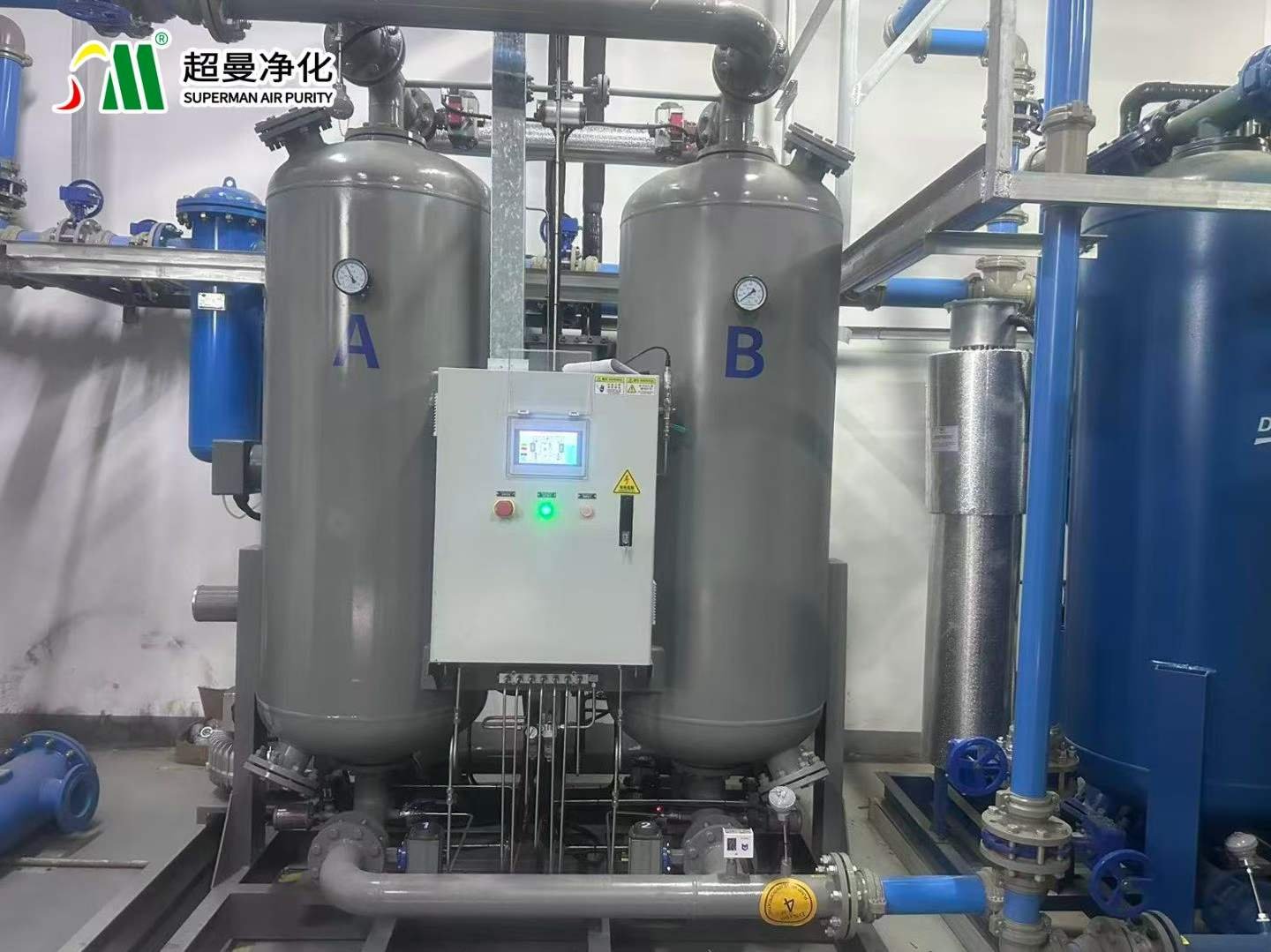

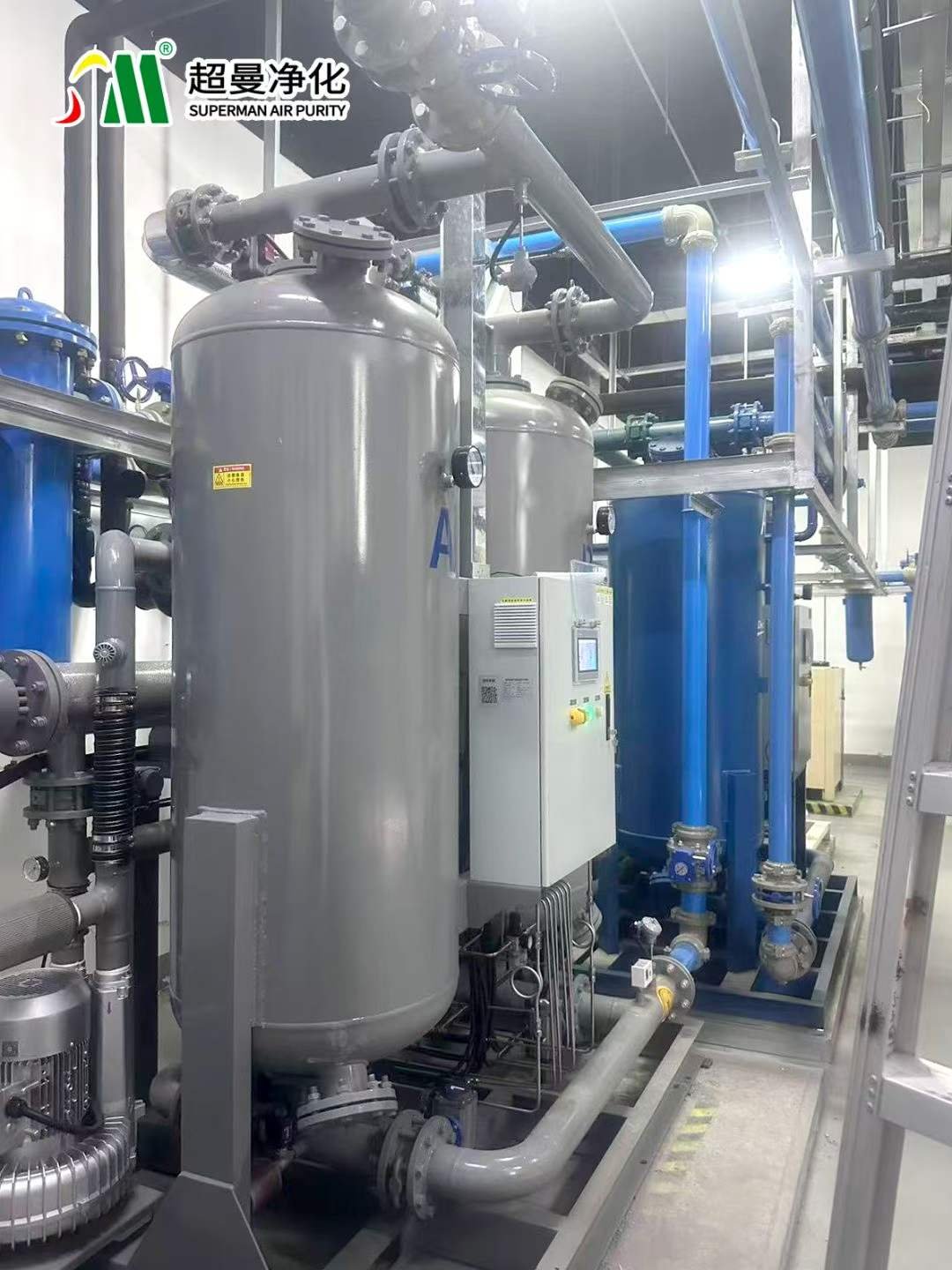

The dryer consists of two towers filled with high-performance adsorbents (such as activated alumina or molecular sieve). While one tower dries the compressed air, the other tower is simultaneously regenerated using a small portion of the dry compressed air (purge air) at atmospheric pressure. The process alternates automatically between the two towers, ensuring continuous dry air supply.
Key Features & Advantages
- No external heat required — truly heatless operation, significantly reducing energy consumption.
- Extremely low dew point — achievable pressure dew point down to -40°C or even -70°C.
- Simple and reliable design — fewer components, easy maintenance, and long service life.
- Stable performance — unaffected by ambient temperature variations.

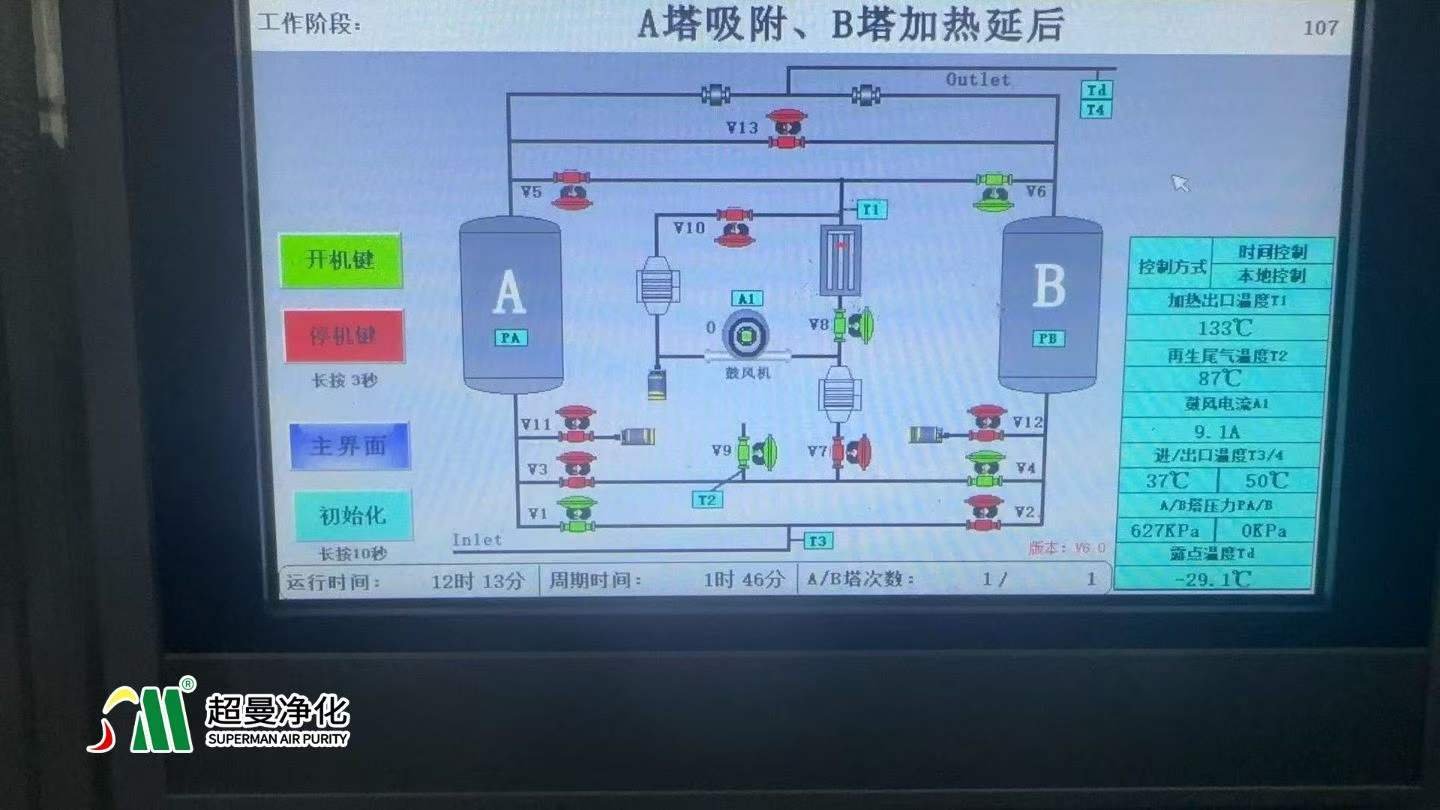

- Fully automatic operation — PLC control with reliable valve switching.
- Low maintenance cost — high-quality adsorbent with extended service life.
Typical Applications
Laboratories and testing facilities
Precision instruments and pneumatic control systems
Pharmaceutical and food manufacturing
Electronics and semiconductor industry
Painting and coating processes
Chemical and petrochemical plants
