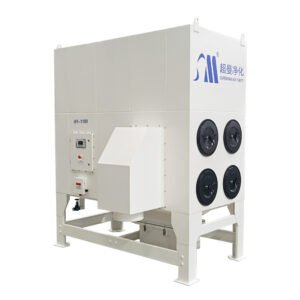

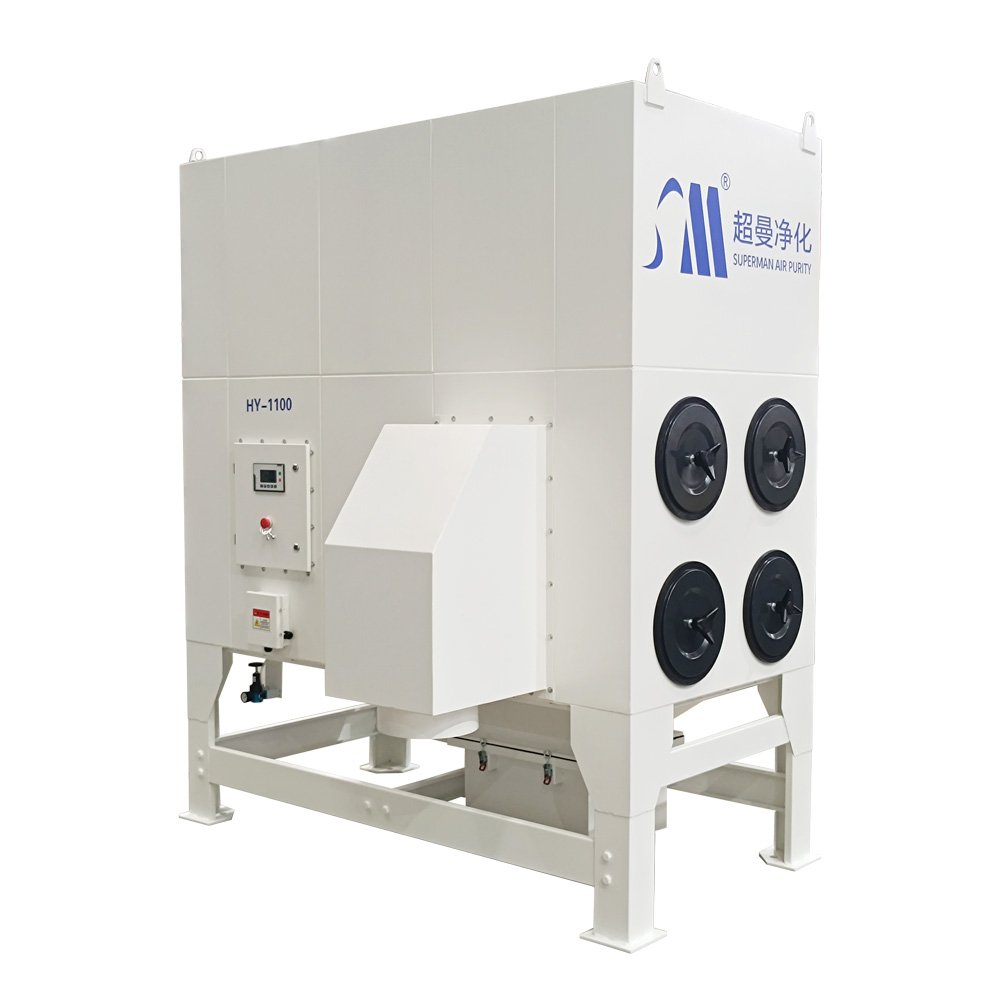

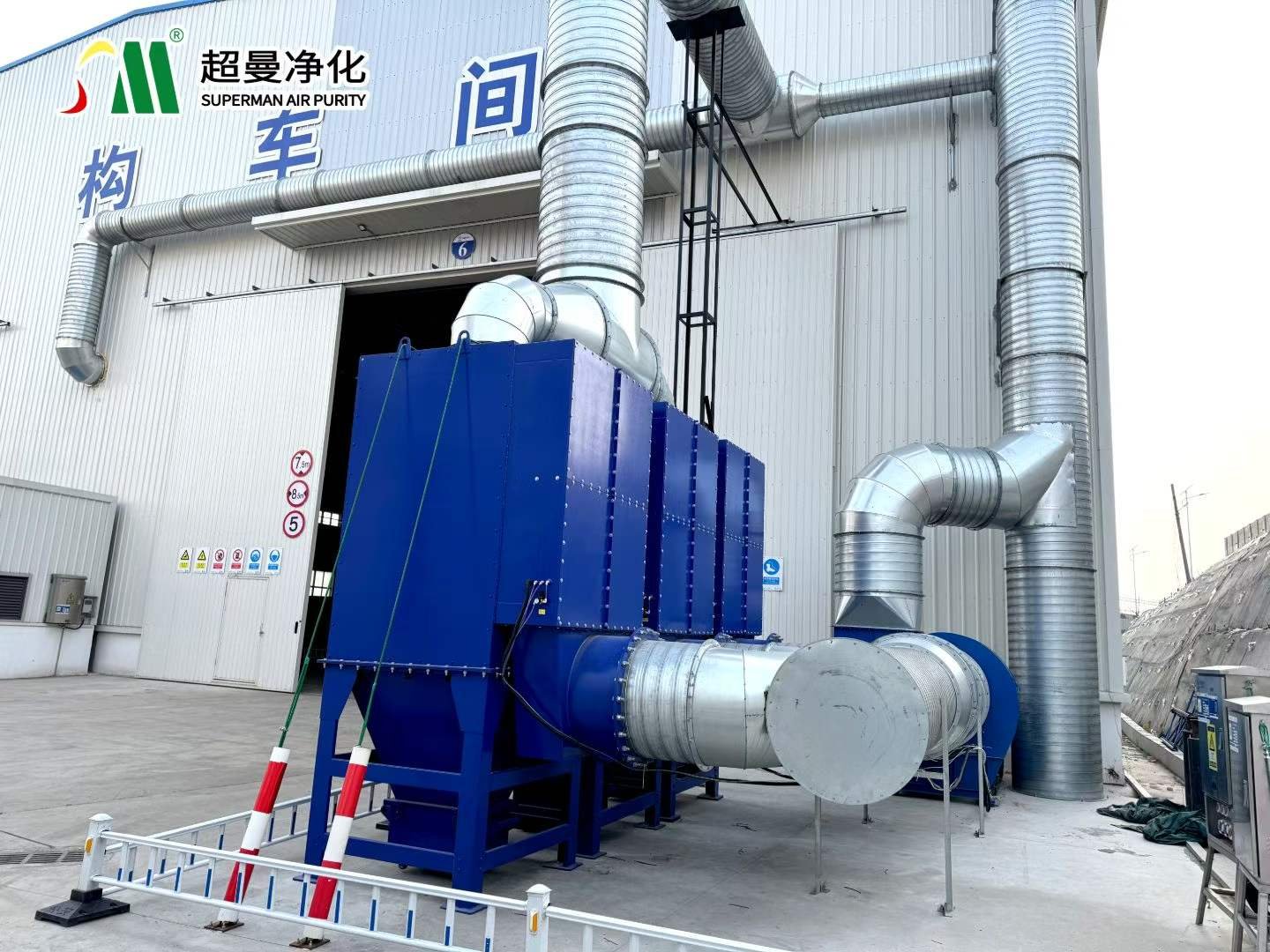

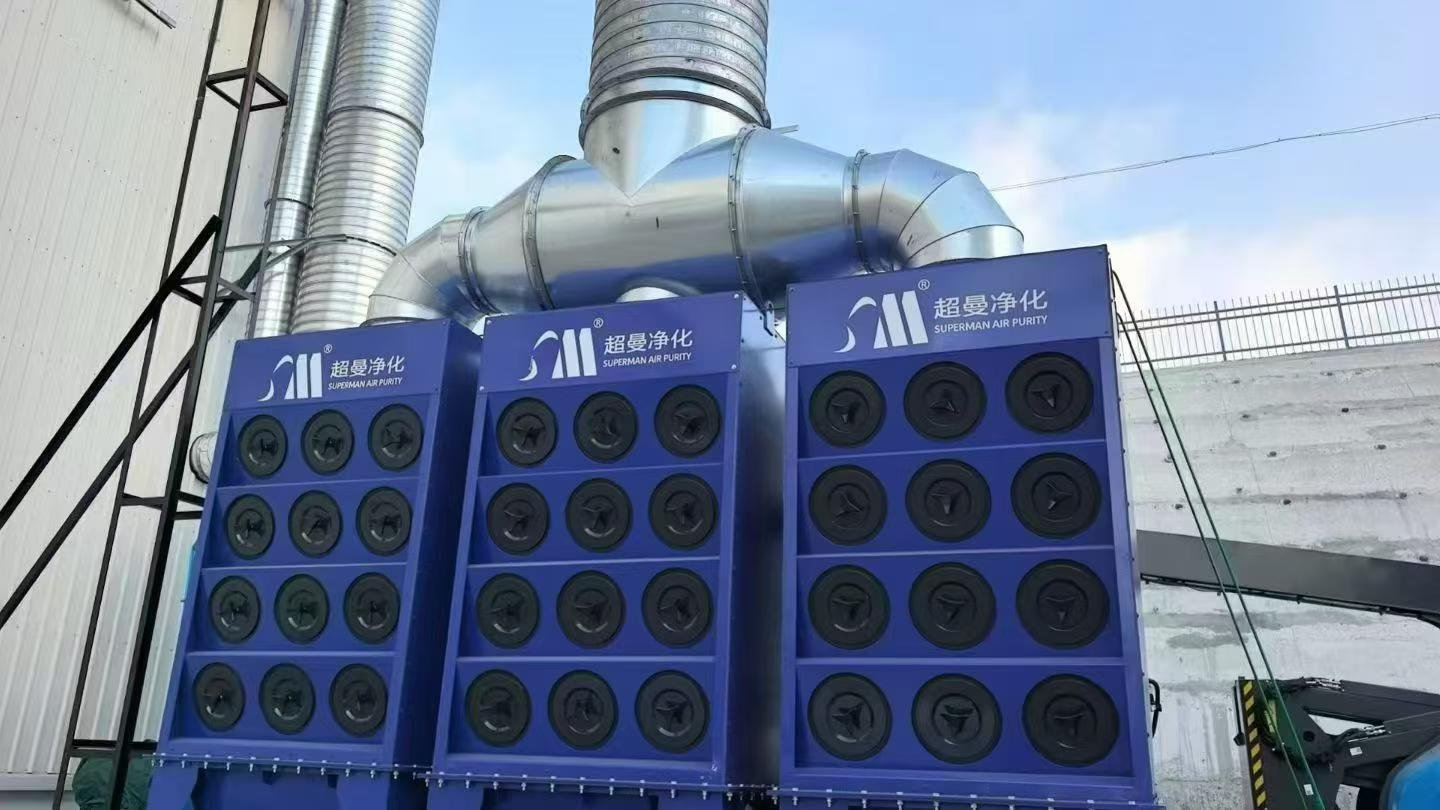

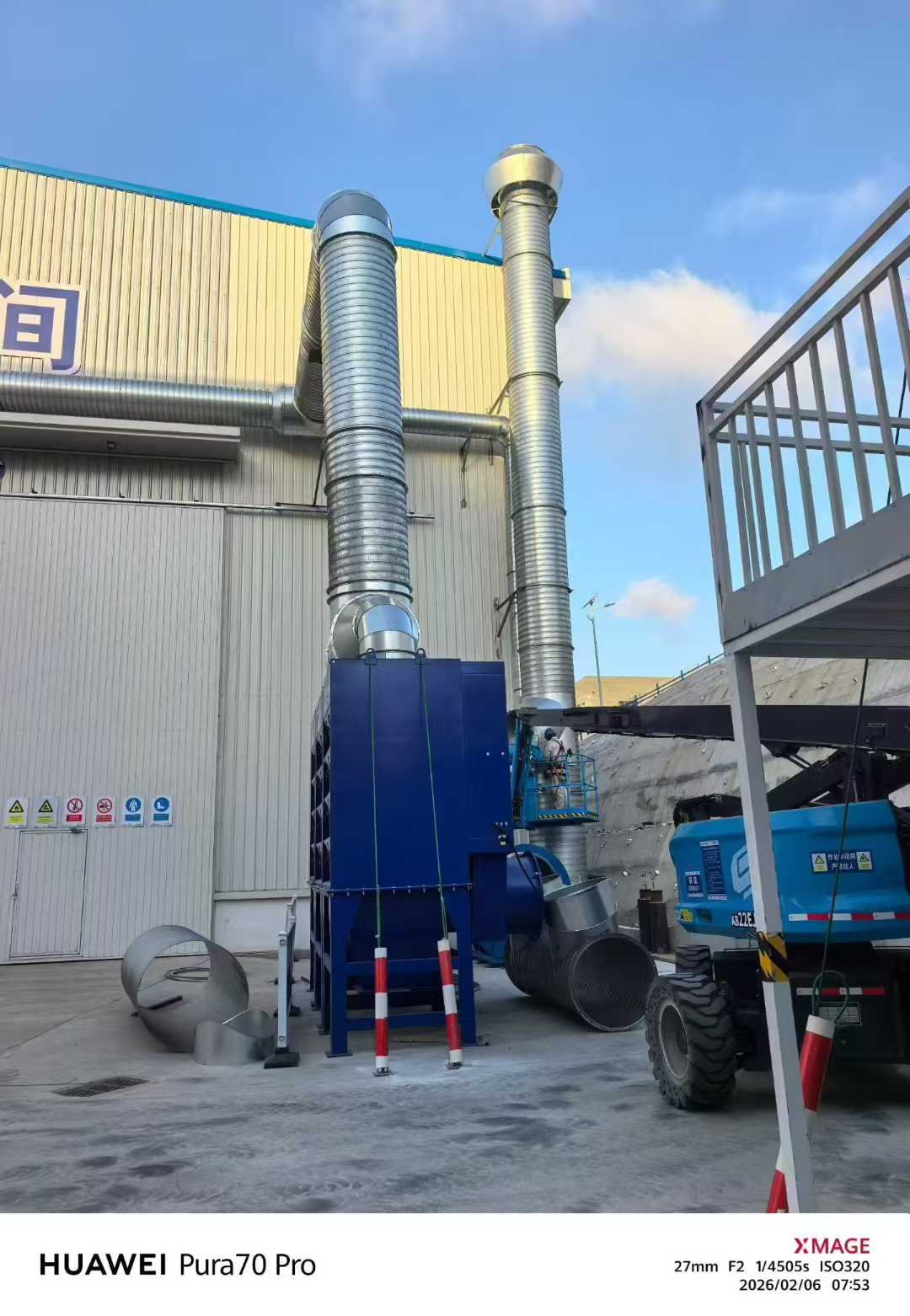

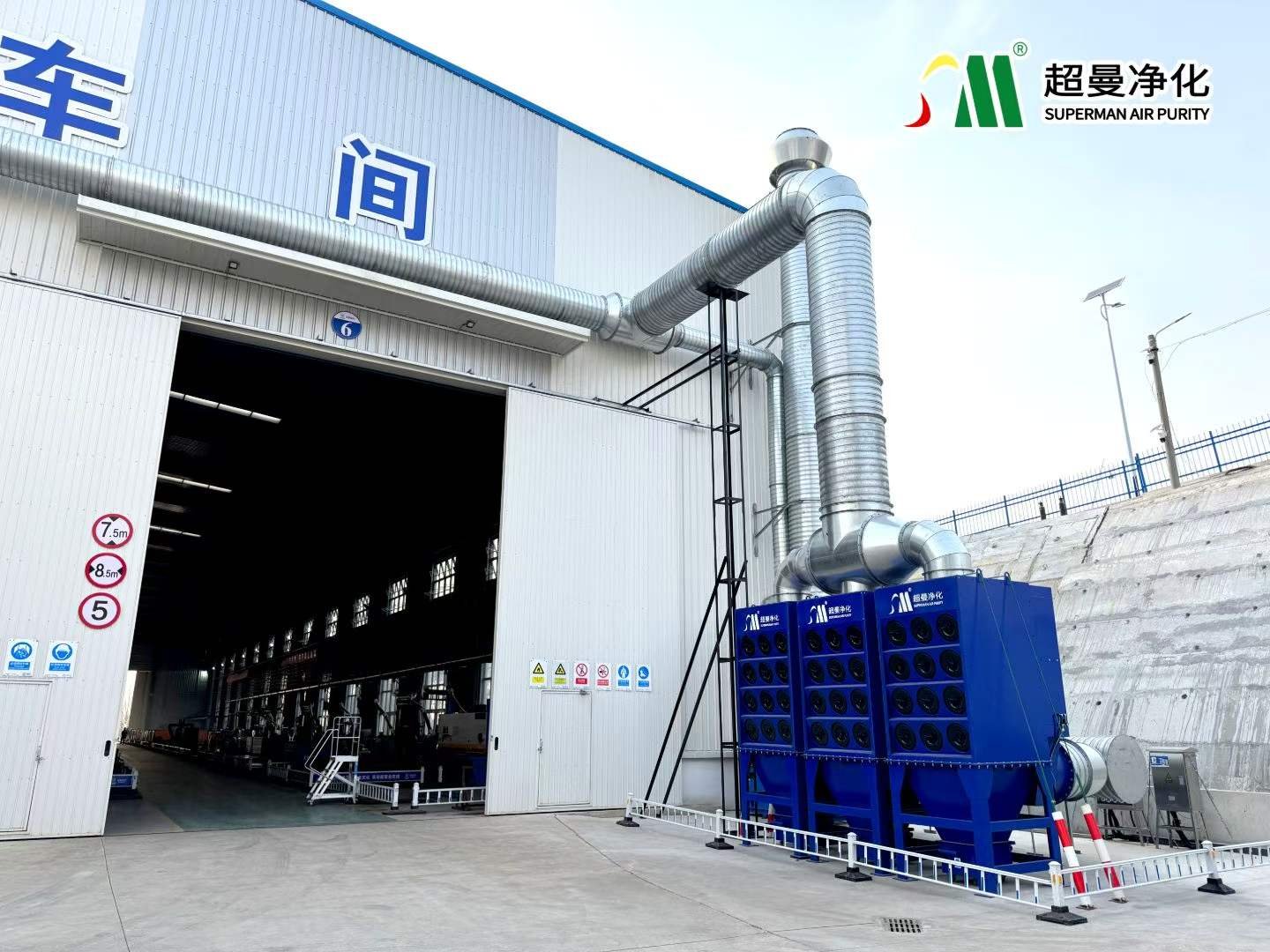

Central Cartridge Dust Collection
A modular cartridge collection system for centralized extraction from suitable industrial processes. System selection must account for dust properties, simultaneous extraction points, required capture airflow and total duct resistance.
Published SMZY Module Specifications
| Model | Listed units | Filter cartridges | Filter area (m²) | Weight (kg) | L × W × H (mm) |
|---|---|---|---|---|---|
| SMZY-24 | 1 | 24 | 552 | 2,600 | 3,656 × 1,842 × 2,486 |
| SMZY-32 | 1 | 32 | 736 | 3,200 | 3,656 × 2,503 × 2,396 |
| SMZY-40 | 1 | 40 | 920 | 4,500 | 3,656 × 2,916 × 2,659 |
The published module sheet does not specify fan power, extraction airflow or available static pressure. These must be confirmed for the selected module and duct network; filter area alone does not determine system capacity.
System Configuration
The product literature describes modular construction, cartridge replacement access, PLC control and adjustable pulse cleaning. Confirm the filter media, cleaning-air requirement, controls and fan package in the final quotation.
The catalog illustrates optional variable-frequency control, cyclone separation, spark arresting, explosion isolation, explosion venting and fire suppression. These are application-dependent options, not standard equipment or a universal suitability guarantee. Dust and process hazards must be assessed before specifying the system.
Information Needed for a System Proposal
- Process, material, coating and dust characteristics.
- Number of collection points and simultaneous operation.
- Capture hood layout, duct dimensions and route.
- Required airflow and pressure loss, if available.
- Operating hours, dust load, available footprint and utilities.
- Required discharge or air-return arrangement and site requirements.
View the original SMZY module specification sheet
Plan Your Central Extraction System
Send a workshop layout and process details. We will confirm the module, fan and required options for your application.
