Centralized Dust Collection for Grinding Stations
When several grinding or polishing stations operate in one workshop, a centralized grinding dust collection system can connect the workstations to one collector and fan. The design must capture dust close to each tool while maintaining enough transport velocity through the shared duct network.
Why Centralize Grinding Dust Collection?
- multiple fixed workstations can share one collector;
- filter maintenance is concentrated in one location;
- fan control can be coordinated with active stations;
- work areas remain less cluttered than with many standalone collectors.
Capture at the Grinding Source

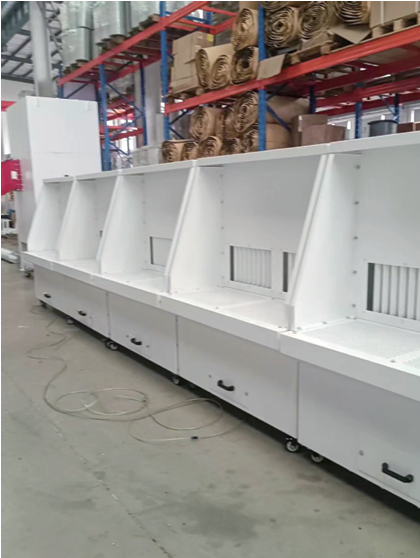

Backdraft tables, downdraft tables, local hoods or machine enclosures can be used depending on the process. The closer the capture point is to the dust generation zone, the less total airflow is generally required.
Duct Design
Grinding dust can include relatively heavy particles, so duct velocity is important to prevent material from settling. Branch sizes, elbows and dampers should be selected using the dust properties and simultaneous operating stations.
Filter Loading
Cartridge filter area and pulse-cleaning frequency should be matched to the total dust load. Differential-pressure monitoring is useful for identifying changes in filter loading or cleaning performance.
Material Compatibility
Different grinding materials should not automatically be combined in one dust stream. Some metal dust combinations can create combustible or reactive hazards. The material mix should be reviewed before a shared collector is designed.
Standalone vs Centralized Equipment
For one isolated station, an integrated grinding dust collector may be simpler. For multiple permanent stations, a central cartridge system provides more scalable airflow and filter area.
Project Inputs
Provide the number of grinding stations, simultaneous use, dust material, hood dimensions, duct layout, operating hours and collector location. Contact Superman engineering and sales for system sizing.
