Robotic Welding Dust & Fume Collection System Design

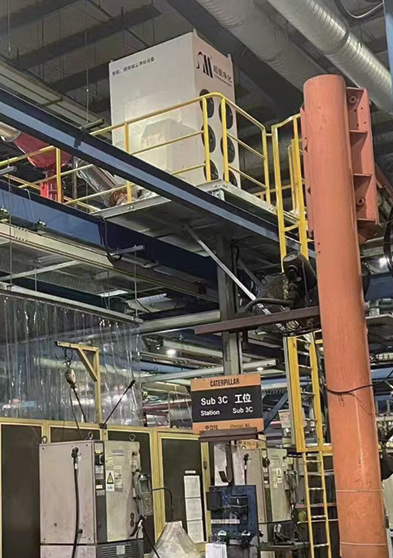

Robotic welding cells generate repeatable fume at a defined location, which makes them well suited to engineered source capture. A robotic welding fume extraction system can use partial enclosures, overhead hoods or local extraction points connected to a central cartridge collector.
Why Robotic Welding Is Different
Unlike manual welding, the torch path and production cycle are predictable. This makes it possible to design the hood and airflow around the cell rather than relying on an operator to reposition a suction arm.
Capture Options
- partial or full cell enclosures;
- overhead canopy hoods;
- side-draft or back-draft extraction;
- local extraction integrated into fixtures where practical.
Airflow and Cell Openings
The required airflow depends on the size and location of open areas in the enclosure, the fume plume and the desired inward air velocity. Excess airflow can increase energy use and interfere with shielding gas, so capture should be designed around the actual cell rather than using a generic value.
Central Filtration
Multiple robotic cells can share one central collector when simultaneous demand and branch balancing are included in the design. Pulse-cleaned cartridge filtration is commonly used for suitable dry welding fume applications.
Process and Material Review
Fume composition depends on welding process, base metal, filler wire and coatings. These factors should be considered when selecting filter media and deciding whether filtered air can be recirculated.
Integration With Automation
Extraction dampers or fan control can be interlocked with cell operation so that airflow is supplied when the welding cell is active. Variable-speed fan control may reduce unnecessary airflow when only part of the system is operating.
For multi-cell projects, see our central cartridge dust collector solution.
Project Information Needed
- number of robotic welding cells;
- cell dimensions and openings;
- welding process and material;
- simultaneous operating cells;
- available duct route;
- daily production schedule.
Contact Superman engineering and sales with the robotic cell layout for an extraction recommendation.
