Industrial Filter Media for Dust, Fume & Oil Mist Collection

Industrial filtration performance depends on matching the filter media to the contaminant, airflow, temperature, moisture and cleaning method. Dust, welding fume and oil mist behave differently, so one filter cartridge or one efficiency number should not be applied to every process.

Superman uses pleated and composite filtration materials in industrial dust-collection systems and selects media according to the application requirements.

Why Filter Media Selection Matters

The filter media affects pressure drop, dust release during pulse cleaning, service life and the particle range that can be captured. A good selection balances filtration performance with airflow resistance and maintainability.

Important factors include:

• particle size and dust concentration;
• dry dust, fume or aerosol characteristics;
• temperature and humidity;
• oil or moisture in the air stream;
• electrical conductivity or static concerns;
• pulse-cleaning frequency;
• required downstream air quality.

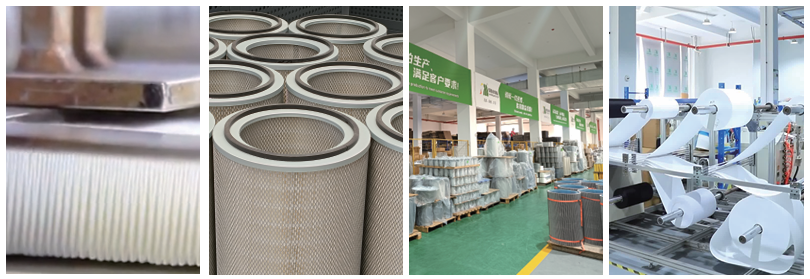

Surface Filtration and Pleated Cartridges

Many modern cartridge collectors use pleated media to provide a large filtration area in a compact volume. Surface-treated or membrane media can help keep dust closer to the outer surface, making the dust cake easier to release during pulse cleaning for suitable applications.

This can help reduce deep loading of the media, but actual differential pressure and service life still depend on the dust and operating conditions.

Common Media Options

Polyester-Based Cartridge Media

A common choice for dry industrial dust where temperature and chemical conditions are within the media’s rated range.

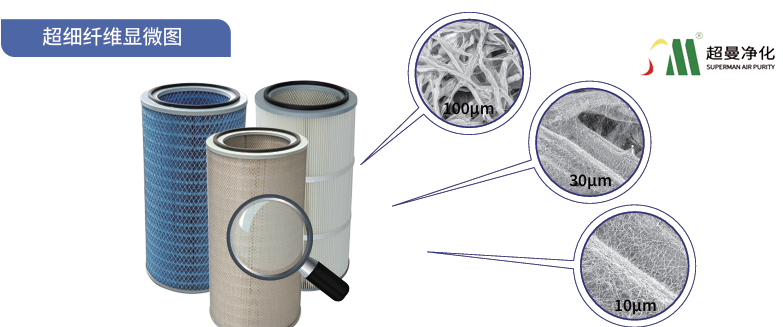

Surface-Treated or Membrane Media

Surface treatments can improve dust release and support fine-particle filtration in selected applications. The exact media construction should be chosen according to the dust and cleaning method.

Anti-Static Media

Anti-static properties may be required for some dusts, but anti-static media alone does not make a complete combustible-dust system safe. Grounding, duct design, ignition control and any required explosion-protection measures must be considered separately.

Flame-Retardant Media

Flame-retardant filter media can be one part of a hot-particle or spark-risk strategy. It does not replace source control, spark separation or the project-specific fire and explosion assessment.

Dust and Welding Fume Filtration

For laser cutting, welding and grinding, cartridge filtration is commonly used because of its compact filter area and compatibility with pulse cleaning. The collector should be selected as a complete system that includes source capture, airflow, duct resistance and dust discharge.

See our laser cutting and welding dust collection solution for a typical application.

Oil Mist Requires Different Considerations

Oil mist and liquid aerosol should not automatically be treated like dry dust. Aerosol loading, drainage, coalescence and media compatibility become important, and a dry pulse-cleaned dust cartridge may not be the appropriate technology for every oil-mist application.

When oil mist is present, provide the fluid type, aerosol concentration, temperature, machine process and required discharge condition so the filtration approach can be reviewed separately.

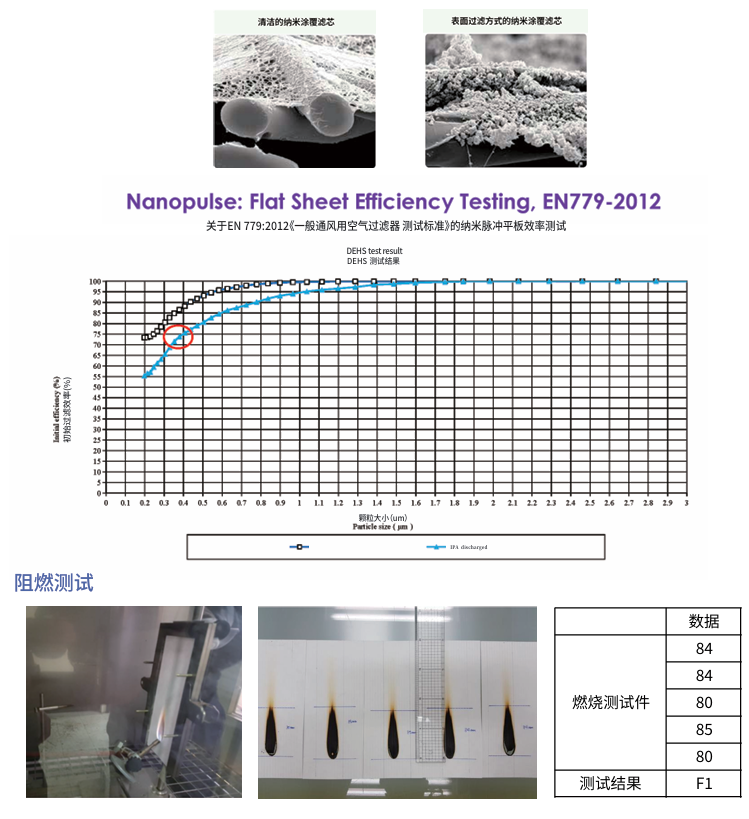

Do Not Rely on a Single Micron Number

A statement such as “0.3 μm filtration” does not fully describe filter performance. Efficiency depends on test method, particle distribution, media velocity, loading and the complete filter construction.

For technical selection, use validated media data for the specific cartridge or filter being supplied rather than assuming that a generic percentage applies to all operating conditions.

Pressure Drop and Energy Use

Lower filter resistance can reduce fan energy requirements, but the system must still provide enough filtration area and capture performance. As filters load, pressure drop increases. Differential-pressure monitoring is therefore useful for both maintenance and energy management.

Pulse Cleaning

For pulse-cleaned cartridge collectors, the cleaning system should use compressed air at the pressure and quality specified for the equipment. Moisture or oil in the pulse air can affect dust release and filter life.

How to Select the Right Media

Provide the following information:

• dust, fume or aerosol type;
• particle characteristics and expected loading;
• airflow;
• temperature and humidity;
• oil or moisture content;
• combustibility or chemical-reactivity information;
• cleaning method;
• required outlet-air condition.
