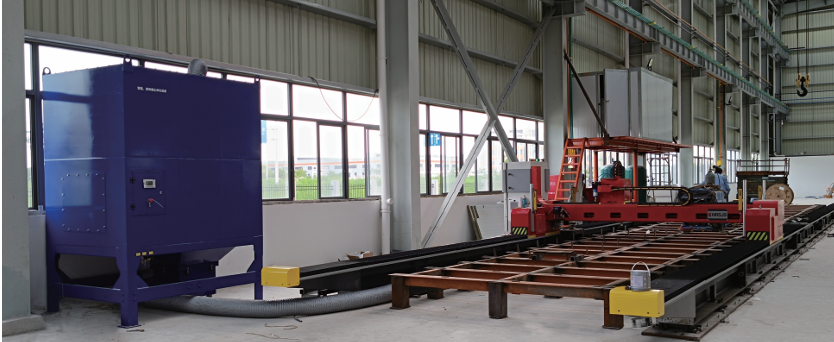

High-Power Laser Cutting Dust Collection

High-power laser cutting can generate a concentrated mixture of fine metal particulate, smoke and hot particles inside the cutting bed. As laser power, cutting speed and material thickness increase, the dust collection system must maintain effective capture while handling higher contaminant loading and long operating hours.

For this application, selecting a collector by motor power alone is not enough. The extraction system should be designed around the cutting-bed zones, simultaneous airflow demand, duct resistance, fan operating point and filter loading.

Why High-Power Laser Cutting Needs Dedicated Extraction

• Fine particulate can remain suspended and migrate outside the cutting enclosure.
• Long cutting cycles can increase filter loading and pressure drop.
• Hot sparks and larger particles may enter the extraction path.
• Poor extraction can contaminate machine components and the surrounding workshop.
• Oversized airflow wastes fan energy, while insufficient airflow reduces capture efficiency.

Zoned Extraction

Many large laser cutting beds use zoned dust extraction. Instead of pulling maximum airflow through the entire bed at all times, dampers or sectional extraction points concentrate suction around the active cutting area. This can improve capture while reducing unnecessary airflow.

The number and arrangement of zones should match the machine structure. Duct size and fan selection should be calculated using the airflow required at the active zones and the total static pressure of the connected system.

Collector Selection Factors

• Required airflow: based on machine enclosure and active extraction zones.
• Total static pressure: includes bed connections, ducts, elbows, dampers and filter resistance.
• Filter area: selected for the expected dust loading and operating schedule.
• Pulse cleaning: helps remove accumulated dust from cartridge surfaces during operation.
• Dust characteristics: material type, particle temperature and combustibility affect system design.
• Maintenance access: cartridge replacement and hopper cleaning should be practical for the plant layout.

Recommended Equipment Architecture

For laser cutting and related dry metalworking applications, see the laser cutting dust collector and welding fume extraction series. Larger multi-machine installations can use the central cartridge dust collector when several extraction points need one centralized system.

Hot Particles and Combustible Dust

Laser cutting systems can generate sparks and hot particles. Pre-separation, spark control and other protection measures may be required depending on the material and process. If the generated dust is combustible, the complete system should be reviewed against applicable explosion-protection and fire-safety requirements rather than treating a standard cartridge collector as a universal solution.

Information Needed for Correct Sizing

• Laser machine model and cutting-bed dimensions
• Laser power and typical materials
• Maximum material thickness
• Number of machines operating simultaneously
• Existing extraction outlet sizes and zone arrangement
• Approximate duct lengths and number of elbows
• Daily operating hours
• Indoor recirculation or outdoor exhaust requirement

With these inputs, the fan, ducting and filtration system can be selected as one engineered package instead of relying on a single nominal airflow figure.
