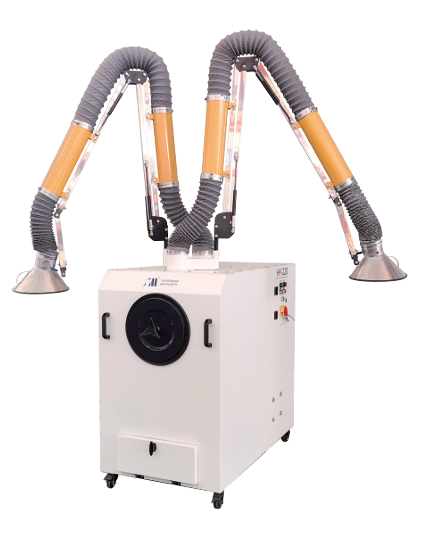

The Supermanair mobile welding fume extractor is a purification unit specifically designed for industrial welding fumes and light particulate matter. Equipped with a flexible suction arm and casters, it offers excellent maneuverability and flexible usage. This product is widely used for fume and dust purification in various applications such as welding, polishing, cutting, and grinding, as well as for recovering rare metals and valuable materials.
Working Principle
Fumes generated during production operations are drawn into the mobile welding fume extractor through the suction hood via fan suction. After initial filtration, the fumes pass through a filter cartridge protective plate, which further blocks particles and residual sparks. The pre-filtered fumes then enter the main filter cartridge, which is made of imported anti-static, flame-retardant composite fiber media, achieving a filtration efficiency of 99.9%. The purified air is then discharged through the outlet in compliance with emission standards.
Application Range
- 1. Mobile welding stations
- 2. Laser marking
- 3. Grinding and polishing tables
- 4. Various dust and smoke applications
- 5. Material recovery
- 6. Odor purification

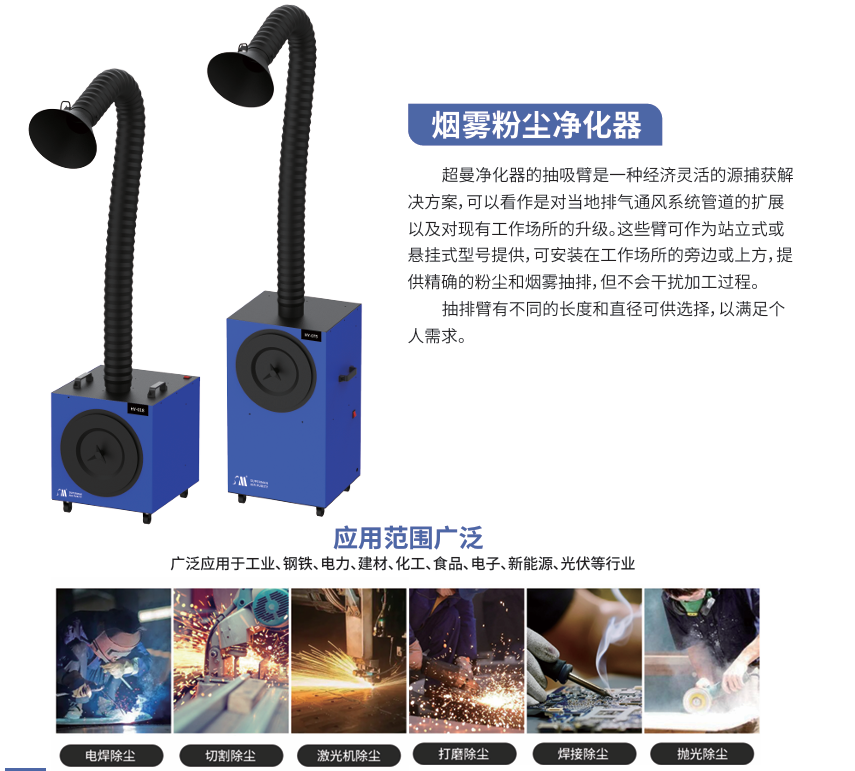

Smoke & Dust Purifier (Suction Arm Series)
The Supermanair suction arm is an economical and flexible source-capture solution. It can be considered an extension of local exhaust ventilation system ducts and an upgrade to existing workplaces. These arms are available as floor-standing or ceiling-mounted models and can be installed beside or above the workstation, providing precise dust and fume extraction without interfering with the production process.
The suction arms are available in different lengths and diameters to meet individual needs.
Wide Range of Applications
Widely used in industries such as:
- 1. Industrial manufacturing
- 2. Steel and metallurgy
- 3. Power generation
- 4. Building materials
- 5. Chemical engineering
- 6. Food processing
- 7. Electronics
- 8. New energy
- 9. Photovoltaic (solar) manufacturing
Performance Features
- 1. Thickened sheet metal housing – elegant appearance with four swivel rubber casters for free movement within the workspace
- 2. High-efficiency fan design – large airflow with low power consumption
- 3. Flexible suction arm – 360° rotatable, capturing fumes directly at the source, significantly improving collection efficiency and protecting worker health
- 4. Anti-static, flame-retardant composite fiber filter cartridge – high adsorption capacity, enhanced safety, >99.9% filtration efficiency, long service life, capable of capturing particles as small as 0.3μm
